Granite Cutting Segment

Name: Granite Cutting Segment
Brand: Hebei Buteo International Co., Ltd.
Price: 100 USD

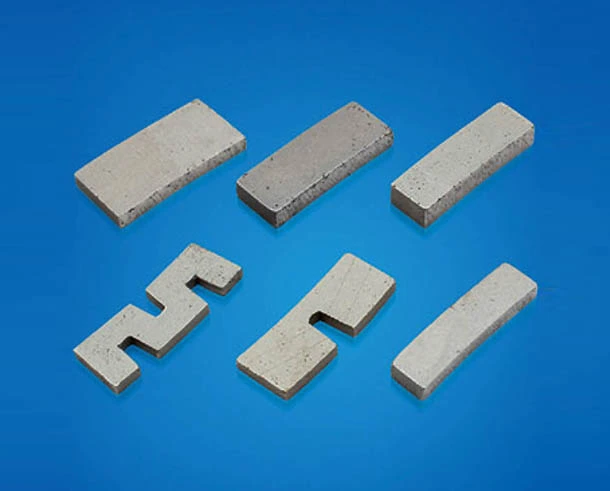

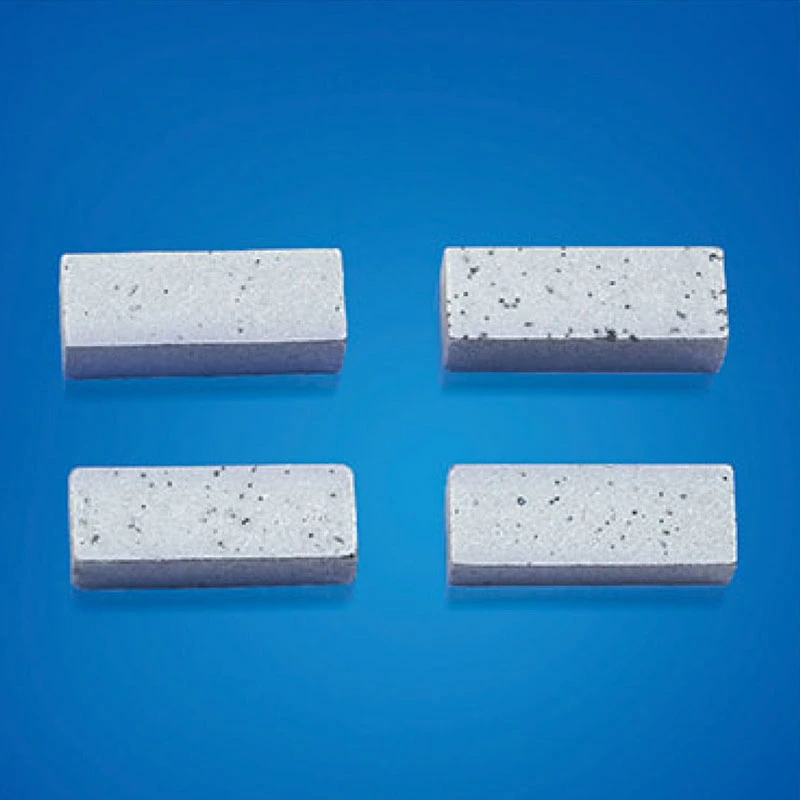

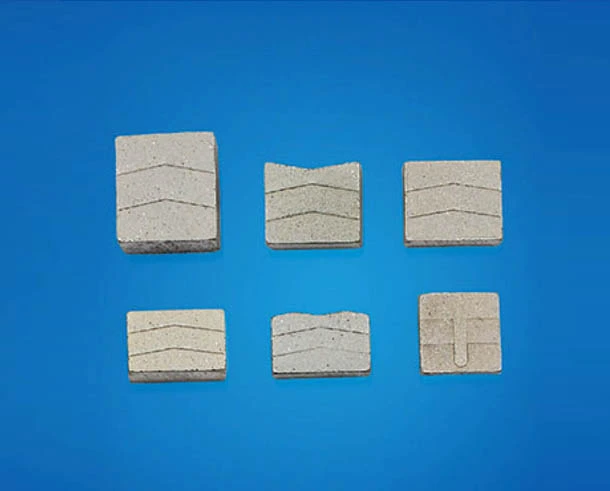

Granite cutting segment are small, specialized cutting tools used in diamond saw blades. These segments contain synthetic or natural diamond particles, offering exceptional hardness and durability for precise and efficient cutting of granite slabs, countertops, and tiles in the stone fabrication industry. We are a professional granite cutter segment supplier, dedicated to providing you with quality products and services. We believe that through our granite segments, you will definitely achieve more brilliant achievements in your field!

Contact Us

Specification of Granite Cutting Segment

CODE NO.	Diameter(mm)		Segment Length(mm)	Segment thinkness(mm)	Segment Height(mm)	Teeth No.
CODE NO.	inch	mm	Segment Length(mm)	Segment thinkness(mm)	Segment Height(mm)	Teeth No.
BT-DS-G	10”	250	40	3.0	12/15/20	17
BT-DS-G	12”	300	40	3.0	12/15/20	21
BT-DS-G	14”	350	40	3.2	12/15/20	24
BT-DS-G	16”	400	40	3.4	12/15/20	28
BT-DS-G	18”	450	40	4.0	12/15/20	32
BT-DS-G	20”	500	40	4.2	12/15/20	36
BT-DS-G	24”	600	40	4.8	12/15/20	42
BT-DS-G	28”	700	40	5.2	12/15/20	42
BT-DS-G	32”	800	40	5.6	12/15/20	46
BT-DS-G	36”	900	24	6/6.8	15/20	64
BT-DS-G	40”	1000	24	6.5/7.5	15/20	70
BT-DS-G	48”	1200	24	6.5/7.5	15/20	80
BT-DS-G	56”	1400	24	7.5/8.5	15/20	92
BT-DS-G	64”	1600	24	8.4/9.2	15/20	108
BT-DS-G	72”	1800	24	9.2/10	15/20	120
BT-DS-G	80”	2000	24	9.5/10.5	15/20	128
BT-DS-G	88”	2200	24	10.5/11.5	15/20	132
BT-DS-G	100”	2500	24	11.5/12.5	15/20	140
BT-DS-G	120”	3000	24	12.5/13.5	15/20	160

Advantages of Using Granite Cutting Segment

1. [Pre-alloyed powder technology] -The density of the body is increased by 30%. When cutting granite, the granite cutting segment effectively avoids the loss of diamond particles, and the measured efficiency of cutting granite is increased by more than 20%

2. [Low temperature sintering process]

The characteristic low temperature sintering of prealloyed powder reduces diamond thermal damage while ensuring the strength of the granite cutter segment body. This process keeps the segment granite sharper, and extends the continuous cutting time by 40% compared to conventional diamond segments for granite cutting.

3. [Environmental formula system] -Metal dust emissions reduced by 60%

The spheroidity of the prealloyed powder is more than 98%, which reduces the powder flying in the pressing process, which meets the requirements of ISO 14001 environmental management system.

4. [Extended Lifespan] -Diamond segments have a longer lifespan compared to conventional diamond tools, reducing replacement costs and downtime.

Buteo Granite Cutter Segment: Cutting Through Granite Like a Breeze, Without a Crack

Experience the ultimate in durability and precision with our granite cutting segments. Just like a master sculptor’s chisel, our segments are designed to cut through the toughest granite without causing any local or overall fractures. Engineered with high-strength diamonds and advanced bonding technology, they ensure smooth, uninterrupted cuts every time. Say goodbye to the frustration of unexpected breaks and costly downtime. Our segments maintain their integrity under the most demanding conditions, providing you with consistent performance and peace of mind.

Diamond Segments for Granite Cutting vs Diamond Marble Segments

Granite cutting segment:

Emphasis on wear resistance and cutting efficiency, suitable for long-term high-load work.

The cutting speed is slow, but it can effectively resist the wear of granite.

Marble segment:

The marble cutting segment emphasizes cutting accuracy and surface finish, suitable for fine processing.

The cutting speed is fast, but the sharpness and chip removal ability of the cutting head are required to be higher.

Precautions for Using Diamond Segment for Granite Stone

When the granite segments are working, the workpiece should be fixed, and the profile positioning must be in line with the direction of the cutting to avoid abnormal cutting. Do not apply side pressure or curve cutting to avoid affecting the granite segments on the blades to contact the workpiece, causing damage, or the workpiece flying out, and accidents. When the granite segments are working, if there are abnormal sounds and vibrations, rough cutting surfaces or odors, the operation should be stopped immediately and checked in time to eliminate the granite segments faults and avoid accidents.

Wholesale Diamond Segments for Granite Stone – Industrial Supplier

01

Premium Diamond Segment for Granite Stone:

Engineered for extreme durability, our granite cutter segments deliver smooth cuts with minimal wear, ideal for high-volume stone processing.

02

Precision Granite Cutting Segments:

Optimized for CNC and bridge saws, these diamond segments for granite cutting ensure clean edges and extended blade life, reducing downtime.

03

Durable Granite Segments for Industrial Use:

Built with high-grade diamond grit and advanced bonding, our granite segments withstand heavy-duty cutting without chipping or premature wear.

04

Custom Granite Cutter Segment Solutions:

Need tailored specs? We offer granite cutting segments in multiple bond styles and concentrations to match your exact machinery and granite type.

FAQs on Diamond Segments for Granite Cutting

What kind of stone are your segment granite suitable for?

Our segments are graded by hardness:

Soft stone/common stone (such as common marble, limestone): Medium hardness formula, fast cutting, no chipping.

Medium-hard stone (such as common Indian red, sesame grey granite): Standard universal type, best value for money.

Extra-hard stone (such as basalt, quartzite, some imported black granite): Extra hardness formula, high diamond concentration, durable and doesn't dull.

My saw blade is 10 inches, can I use your segments?

A: Absolutely. We offer various standard sizes: Custom sizes are available to fit your saw blade substrate.

Common sizes include: 24/30/35/40mm long diamond segments for granite cutting, with thicknesses from 2.8mm to 4.5mm.

We suggest you provide a saw blade diameter or blade sample so we can provide a precise match.

Why does it feel like the new diamond segment for granite stone is difficult to cut after installation? Does it need sharpening?

A: Yes, the new segment granite needs sharpening!

Reason: The diamond on the surface of the new blade is encased in metal and not exposed.

How to do it: Find a piece of refractory brick or scrap stone, and lightly cut it a few times to remove the surface metal, exposing the diamond particles. The sharpness will immediately be revealed.
