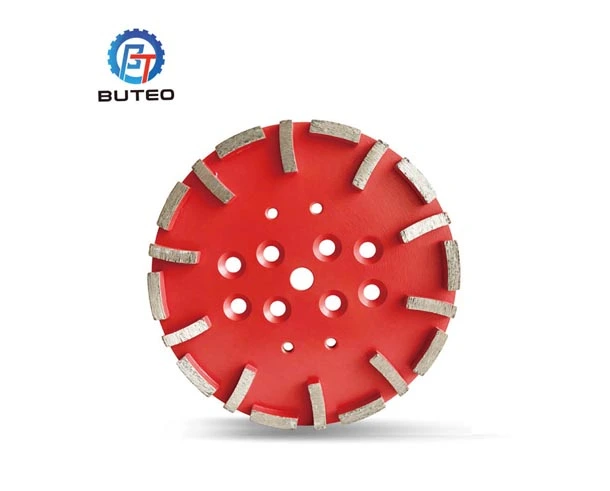

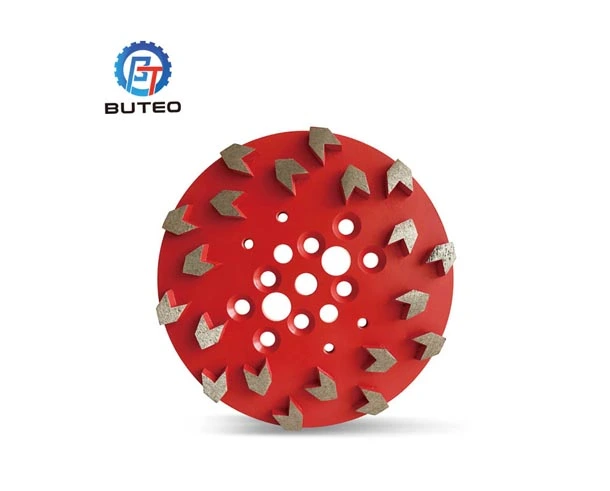

Concrete Grinding Plate for Floor Grinders

Name: Concrete Grinding Plate for Floor Grinders
Brand: Hebei Buteo International Co., Ltd.
Price: 100 USD

Concrete grinding plates are abrasive tools used for smoothing and leveling concrete surfaces. They feature diamond segments for efficient material removal and are attached to grinding machines. These plates are crucial for surface preparation, coating removal, and concrete polishing in construction and renovation projects.

Specification of Concrete Grinding Plate for Floor Grinders

CODE NO.	Diameter (mm)	Height (mm)	Segments No
BT-FG	250	12	10,12
BT-FG-V	250	10	15
BT-FG	300	12	20

CODE NO.	Diameter (mm)	Height (mm)	Segments No
BT-FG-L	250	10	5,10,16,20
BT-FG-L-V	250	10	20

Buteo Diamond Grinding Plates: High Efficiency on Hard Concrete Floors and Long Service Life

75% longer lifespan vs. Standard segments, with premium synthetic diamond matrix and high-temperature sintering for consistent performance in heavy-duty grinding.
Ceramic bond technology of the diamond grinding plate for concrete adapts to concrete hardness, reducing glaze-over risk on m35+ floors.
Patented cooling grooves dissipate heat 30% faster, preventing segment warping and maintaining aggressive cutting speed.
Optimized grit distribution delivers 20% higher removal rates on epoxy-coated or polished concrete versus conventional floor grinding plates.
Field-tested in 1m+ sqm industrial projects (warehouses, airports), with <0.5% segment loss per 10,000 sqm.
Our floor grinder plates are compatible with husqvarna, allen-edgers, and floor grinders (5/8-11 & m14 thread).

Applications of Concrete Grinding Plate for Floor Grinders

Concrete grinding plates find various applications in the construction and renovation industry, including:

1. Surface Preparation: Grinding plates are used to prepare concrete surfaces for the application of coatings, overlays, or sealants by removing imperfections and creating a smooth, clean surface.

2. Concrete Polishing: They are essential in the process of polishing concrete floors to achieve a glossy and durable finish for both residential and commercial spaces.

3. Coating and Adhesive Removal: Grinding plates effectively remove old coatings, adhesives, and mastics from concrete surfaces, allowing for new finishes or flooring installations.

4. Concrete Repair and Restoration: Grinding plates help in leveling uneven or damaged concrete surfaces, facilitating the repair and restoration of concrete structures.

5. Terrazzo and Industrial Flooring: These plates are used to grind and polish terrazzo floors, as well as for maintaining and rejuvenating industrial and warehouse floors to enhance their appearance and durability.
